Len-tic-u-lar-is:強烈な風が荒れた地形や山の上や周辺を吹き抜けるように、高地で発生するレンズ形状の雲の形成。湿気と風の変化と下の荒れた地形との間のこの緊張は、無数の大気現象を生み出しますが、しばしば顕著な対称性、一時的な滑らかさ、透明性を特徴とする非常に特殊な正式な効果です。各雲の形成は、特定の瞬間における大気条件、地形と特定の場所の地形との間の対話のユニークな視覚的指標である。この意味で、レンズ雲は空と地面を仲介し、それらを結びつける。
SCI-ARC Galleryに出展したのは、イサム ノグチがデザインした日系文化・コミュニティセンタープラザの軽量屋根構造の1:7スケールモデルです。この広場のために、ノグチは周囲の街並みから隔離された禅庭により独特の風景を作りました。しかし、コミュニティにとって非常に重要な場所であるこのプラザは、ロサンゼルス特有の気候に曝され、さまざまな活動を行う事ができないでいる。プラザを囲む壁はそれを近所から隠し、街に見えないようにします。
市街地へのプラザの存在を表現する気候的避難所を設けることにより、コミュニティのためのプラザの機能的および象徴的価値を高める屋根を提案。これを実現するためには、ノグチの禅園に触れることのない大規模な屋根がプラザの上に浮かび、ノグチの地形をロサンゼルスの空から隔離することはできません。
提案されたスキームは、概念上、自転車の車輪のように振る舞う非常に軽量な膜構造である。このレンズ雲(Lenticularis) の巨大な屋根は188フィートに及んでおり、ノグチのプラザに触れずにプラザの表面の半エーカーをカバーすることができる50フィートのオーバーハングを含みます。これはプラザの範囲外にある4組の柱で支えられた500フィートの長いリングビームで構成されています。リングビームから伸びる56本のテンションケーブルが中央のスプロケットに集められ、鏡面研磨されたステンレススチール製のパネルが表面に「クラウドスコープ」を形成しています。クラウドスコープは、空に対して視覚的な透明感を与え、プラザのユニークな断面プロファイルは、空と地形の両方を反映し、それらの境界を融合させます
プロジェクトデータ名称: Len-tic-u-lar-s所在地: Sci-Arc、ロサンゼルス、アメリカ主要用途: インスタレーション竣工: 2010
スポンサーMachineousFabriTec StructureJACCCJapan FoundationEpsonJohn A. Batchelor Co. Inc.Hinerfeld-Ward Inc.
共同設計Buro Happold - Los Angeles
写真撮影© Joshua White© Atelier Hitoshi Abe
Len-tic-u-lar-is: A lens-shaped cloud formation that occurs at high altitudes as strong winds blow over and around rough terrain and mountains. This tension between moisture, changing wind conditions, and the rugged terrain below produces a myriad of atmospheric phenomena, but a very particular formal effect characterized by often striking symmetry, ephemeral smoothness and transparency. Each cloud formation is a unique visual index of the dialogue between atmospheric conditions, geography and the terrain of a particular place at a particular moment in time. In this sense, lenticularis mediates the sky and the ground, and unites them.

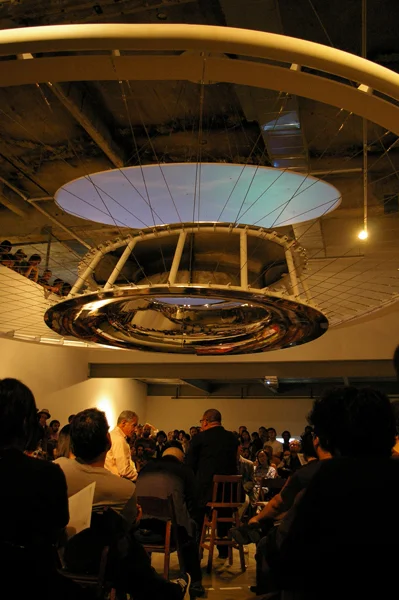

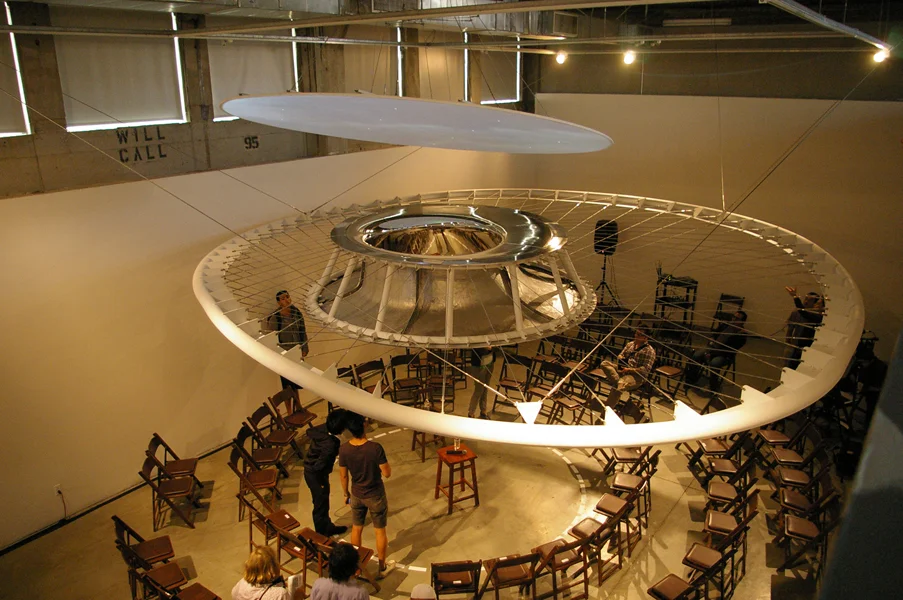

Exhibited at the SCI-ARC Gallery is a 1:7-scale-model of a proposed light weight roof structure over the Japanese American Cultural & Community Center Plaza designed by Isamu Noguchi. For this Plaza, Noguchi created a singular landscape inspired by a Zen-garden that isolates itself from the surrounding townscape. However, the Plaza, which is a very important place for the community, is too exposed to the climate of Los Angeles to host various activities; and the walls which enclose the Plaza conceal it from the neighborhood and make it invisible to the city.
A roof is proposed to enhance the functional and symbolic value of the Plaza for the community by providing a climatic shelter expressing the existence of the Plaza to the urban condition. In order to accomplish this, what needs to be realized is a large-scale roof floating above the Plaza, which will not touch Noguchi’s Zen-garden, nor will it isolate Noguchi’s terrain from the Los Angeles sky; but instead mediate them.

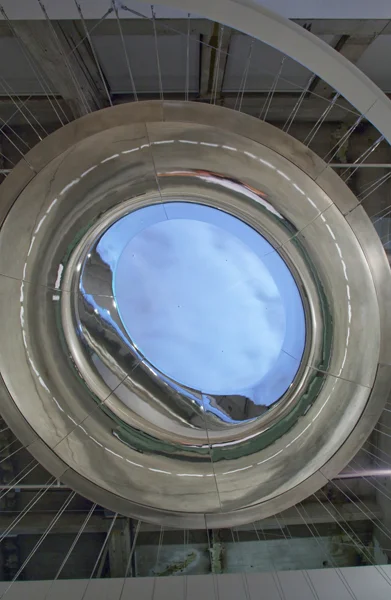

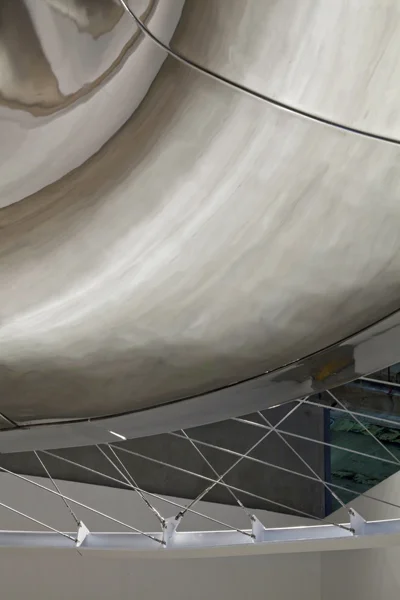

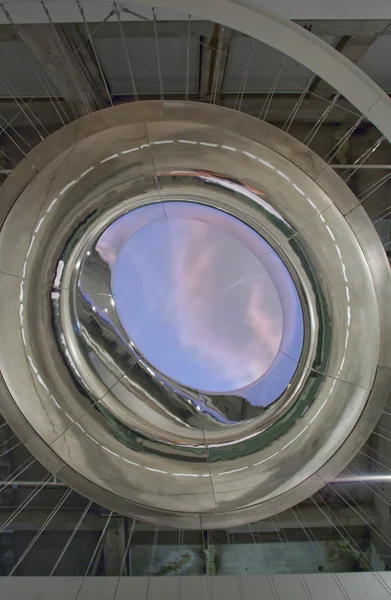

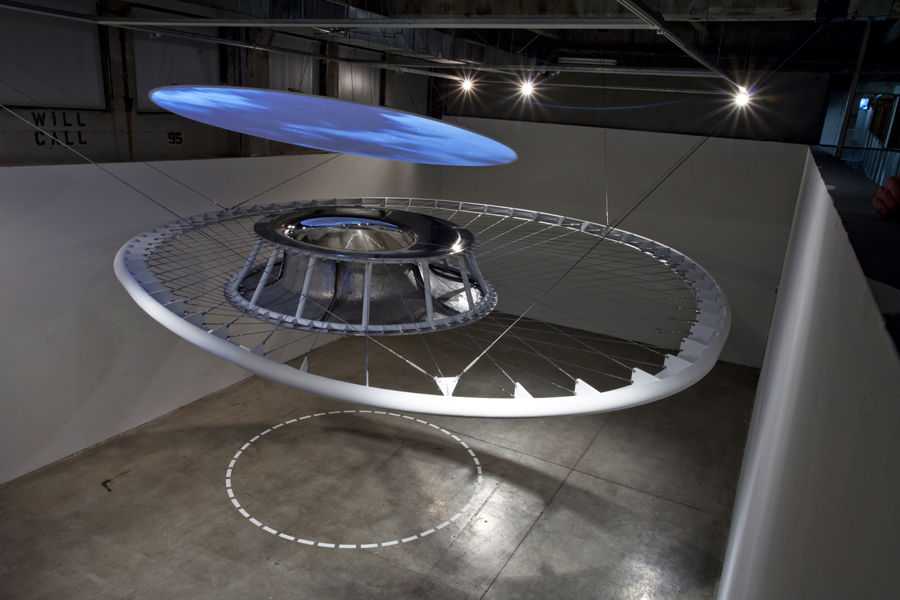

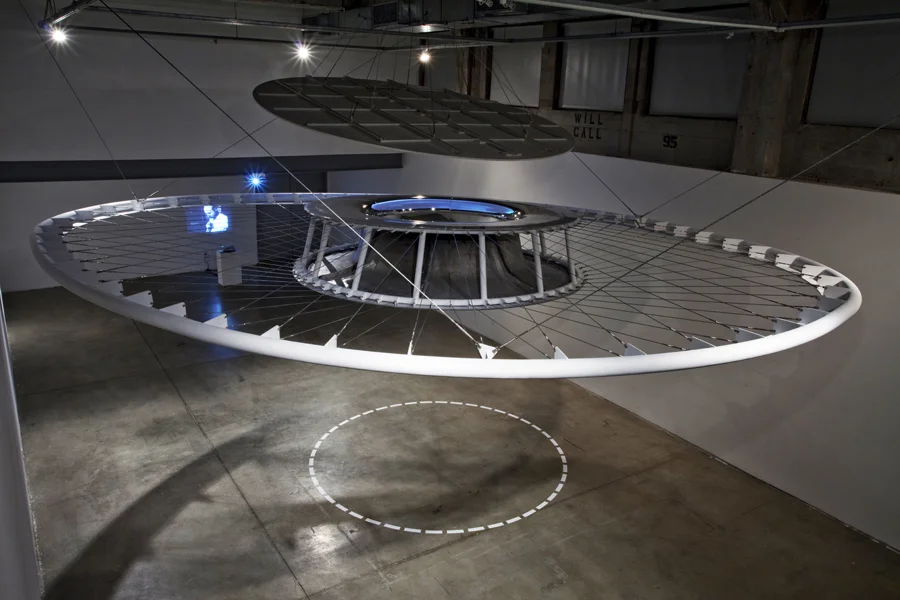

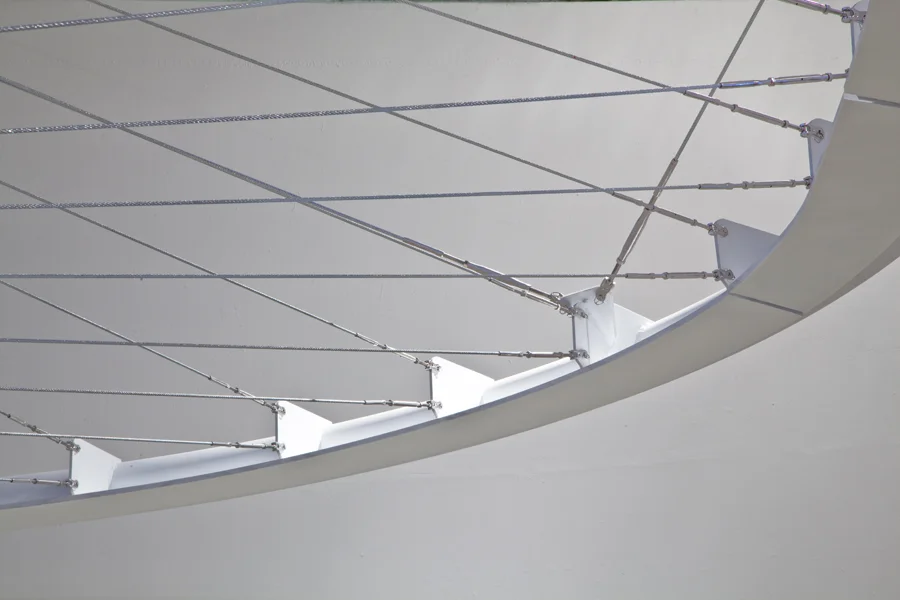

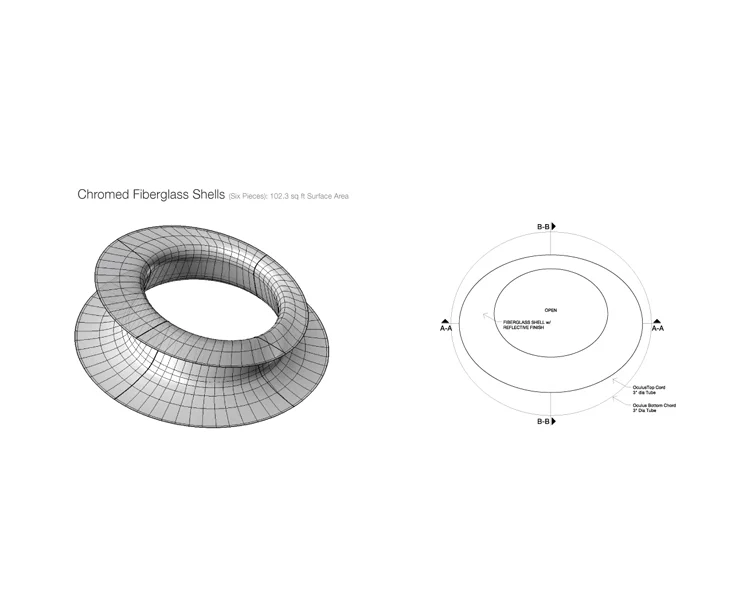

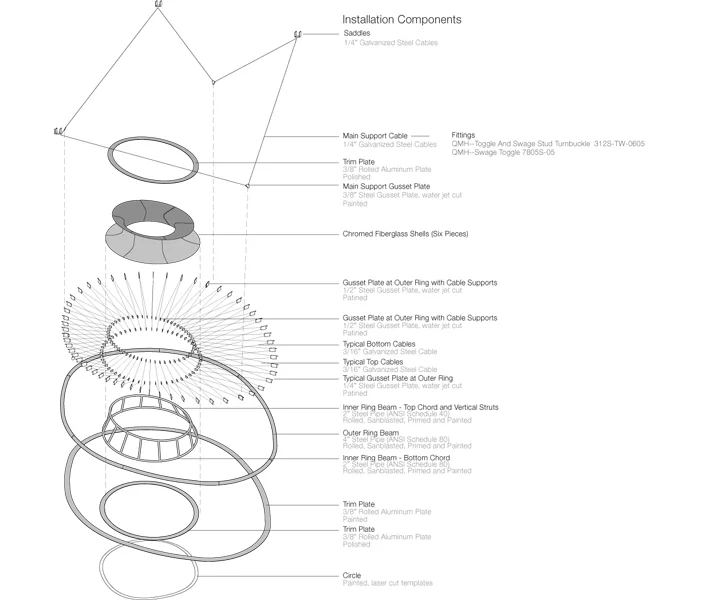

The proposed scheme is an extremely lightweight membrane structure that behaves, in concept, like a bicycle wheel. This lenticularis-like giant roof, spans One-hundred and eighty six feet and includes a fifty foot overhang that makes it possible to cover half an acre of the Plaza’s surface without touching Noguchi’s Plaza. It consists of a five-hundred and twenty foot long perimeter ring beam supported by four sets of columns that fall outside of the extents of the Plaza. Fifty-six tension cables extend from the ring beam and are gathered at a central sprocket, surfaced with mirror-polished stainless steel panels creating a “Cloud-scope.” The Cloud-scope provides visual transparency towards the sky and enhances the openness of the Plaza, while its unique sectional profile reflects both the sky and the terrain and fuses the boundary between them.
Project Data
Project Title: Len-tic-u-lar-s
Location: Sci-Arc, Los Angeles, California, United States
Use: Installation
Size: N/A
Client(s): Sci-Arc; Southern Calfornia Institue of Architecture
Status: Completed, 2010
Sponsors
Machineous
FabriTec Structure
JACCC
Japan Foundation
Epson
John A. Batchelor Co. Inc.
Hinerfeld-Ward Inc.
Collaborators
Buro Happold - Los Angeles
Photography
© Joshua White
© Atelier Hitoshi Abe
